32mm Bar Cutting Machine
TYC-D35
Powerful and High Quality rebar cutting machine

32mm Bar Cutting Machine
TYC-D35
Powerful and High Quality rebar cutting machine

general rebar cutter machine manual

Specifications
Cutting Capacity10-32mm rebar (0.375-1.27in)
Power RequirementsSingle Phase, 220V, 60Hz
Motor3.0kW / 4HP
Weight616kg / 1,355 lb
Dimension (mm)(L) 800mm (W) 520 (H) 1,262mm
No. of bars the machine can cut at once
Diameter of rebar32mm25mm22mm19mm16mm13mm10mm
No. of rebars1112346

Category:

Description

About our Single Phased 32mm Bar Cutter : TYC-D35

  1. The TYC-D35 has been designed based on the feedbacks of its machine operators. CNB Machinery and Steel Corporation does not only focus on the quality of the machine, but we also focus on the quality of the experience of the machine operators of the TYC-D35 bar cutting machine. The rebar cutting machine has oil bathed lubrication gears to operate the machine smoothly with less noise. This makes the process of bar cutting stress-free because of too much noise while cutting rebars.
  2. The TYC-D35 was sensitively designed up to the smallest details. The general rebar cutter has a no sticking phenomenon of crank even after a long period of no usage of the machine. This makes the bar cutter relatively easier to maintain.
  3. Our rebar cutting machine comes with cutter blades that is extremely durable as it is made with high quality materials that can withstand heavy usage if properly used. All 4 sides of the cutter blades can be used for cutting rebars. This means, that if one side of the cutter blade is worn out, the machine operator simply has to rotate the cutter blades to an unused side. Proper rebar cutting practice will prolong the lifespan of the sides of the cutter blades. How to properly cut rebars with the machine can be found in the machine manual as well as the videos uploaded in our website and Youtube channel.
  4. Do not let the term general rebar cutter fool you as our TYC-D35 electric bar cutter has a powerful and precise cutting performance that can cut up to 32mm diameter rebars with ease.The TYC-D35 is equipped with a 4 horse power motor that makes the bar cutter an easy time to cut through 32mm diameter rebars with ease. The electric rebar cutting machine can cut up to 6 pieces of 10mm diameter rebars at once. The bar cutting machine can cut up to 4 pieces of 13mm rebars and 3 pieces of 16mm rebars at once.  This makes the electric cutter such a reliable equipment for general construction projects that require fast cutting of rebars in a short amount of time.
  5. The TYC-D35 is equipped with a pulling knob that makes the cutting of rebars so easy for the machine operator. After properly placing the rebar that needs to be cut, the machine operator has to make sure that the rebar has been properly placed in the bar stopper to prevent the machine operators from getting injured. Once the rebar is properly placed, the machine operator simply has to pull on the pulling knob in order to activate the machine to engage in rebar cutting.
  6. The rebar cutting machine has a back plate installed behind the cutting blade to prevent rebars being stuck while in the process of cutting. The machine was designed for optimal performance without malfunctions during the process of cutting rebars.
  7. The rebar cutting machine is a single phased machine. This means that the electric rebar cutter is compatible with the power supply at home of most households here in the Philippines. The electric bar cutter is operational with 220 volts.
  8. Although the machine is built with high quality parts, improper handling of the machine will lead to machine damage and malfunction. The interior electric motor must not be exposed to rain as this will cause the motor to be damaged which will halt the machine from working. This in return will cause delay in the production of rebars. Moreover, this may also injure the machine operator in the process. CNB Machinery and Steel Corporation greatly values the safety of the machine operators and thus we highly recommend the machine operators to follow the instructions found in the machine manual as well as the demo of machines by our technicians upon delivery.

Heavy duty electric rebar cutters for 42mm rebars and below |Hydraulic Rebar Cutter for 25mm rebars and below | Youtube Video on TYC-D35 Demo

Inquire about our TYC-D35 bar cutter (10mm - 32mm capacity)

Please enter your name.
Please enter a valid phone number.
Please enter a message.

How to operate your TYC-D35 bar cutter

32mm-bar-cutter-step-1

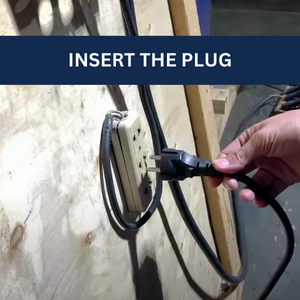

Step 1: Insert the plug of the 32mm bar cutter to the power source

tyc-d35-bar-cutter-step-2

Step 2: Press on the power button of the bar cutter

tyc-d35-bar-cutter-step-3

Step 3: Secure the rebar to the bar stopper of the bar cutter to avoid whiplash

tyc-d35-bar-cutter-step-4

Step 4: Pull the knob of the bar cutter to begin cutting rebars

More videos of our 32mm Bar Cutting Machine: TYC-D35

Cutting-deformed-bars-using-our-TYC-D35-bar-cutting-machine-1200x675

This video shows our TYC-D35 bar cutting machine cutting 10mm rebars up to 32mm rebars.

How-to-cut-deformed-bars-using-our-TYC-D35-1200x675

This video shows how to cut deformed bars using the TYC-D35 rebar cutting machine.

32mm-bar-cutting-machine-TYC-D35-1200x675

This video introduces the bar cutting machine and also how to usse the TYC-D35.

FAQs about 32mm Bar Cutter: TYC-D35

   1. Can your rebar cutter really cut up to 32mm diameter rebars? I have used other brands that states that they can cut up to 32mm rebars but when trying they were not able to do so.

Yes our TYC-D35 is capable of cutting 32mm rebars with ease. CNB Machinery and Steel Corporation does not make any false claims with the machine performance. Kindly watch the video here to watch the demonstration of the bar cutter in action.

The video is seen showing our rebar cutting machine an easy time cutting rebars. Our TYC-D35 is one of our most sought after deformed bar cutter as it can cut from 10mm rebars to 32mm rebars which can greatly help the project site.

  2. Does CNB Machinery and Steel Corporation have the spare parts of the 32mm bar cutter ready on hand? The other brands of rebar cutters I have used before did not have readily available spare parts.

We take great pride in being able to provide the medium to fast moving spare parts of all our bar cutting machine and bar bending machines. As the exclusive distributor of TAEYEON B&C deformed bar cutter and deformed bar benders here in the Philippines for over a decade, we have the privilege to be able to focus on the after sales service for our valuable clients.

To inquire about spare parts, kindly fill out the form here or reach out to our after sales team by emailing us at [email protected] or by calling us in our registered mobile phones and landline.

    3. What if my TYC-D35 deformed bar cutter suddenly does not work and require a repair? Does CNB Machinery provide a repair service for the TYC-D35 rebar cutter?

Yes, we provide machine repair services for both our bar cutting machine and bar bending machines. We have a roster of highly experienced technicians who can repair the machines either on-site or in-house in our warehouse.

To inquire about our machine repair service, kindly fill out the form here or reach out to our after sales team by emailing us at [email protected] or by calling us in our registered mobile phones and landline.

For more questions and inquiries, please do not hesitate to reach out to us. It is our utmost pleasure and duty to assist you with the rebar cutter and rebar bender that you and your project deserves.

Pictures of our 32mm Bar Cutter TYC-D35 in Construction Sites

32mm-bar-cutter-pic-1

Our TYC-D35 bar cutter in a rebar fabrication site

32mm-bar-cutter-pic-2

Our TYC-D35 bar cutter along with our other models ready for delivery

32mm-bar-cutter-pic-3

Our TYC-D35 rebar cutter along with our other models in site

32mm-bar-cutting-machine-pic-5

Cutting rebars using our TYC-D35 bar cutting machine

32mm-bar-cutter-pic-7

Our TYC-D35 rebar cutting machine delivered to our client

32mm-rebar-cutter-pic-4

Our rebar cutter TYC-D35 is precise and easy to operate

32mm-rebar-cutting-machine-pic-6

Our 32mm bar cutter TYC-D35 along with our TYB-D35

32mm-bar-cutter-pic-8

Cutting rebars are made easier and faster with our rebar cutter

32mm-bar-cutter-pic-9

Our rebar cutter can cut up to 32mm rebars

2 reviews for 32mm Bar Cutting Machine
TYC-D35
Powerful and High Quality rebar cutting machine

  1. Ye Kwon

    This 32mm bar cutter is extremely powerful and efficient. It is very easy to use as well. Thank you CNB Machinery and Steel Corporation!

  2. John V

    Simple and easy to operate. It has been 3 months, and I find the machine indispensable!
