36mm Rebar Bending Machine
TYB-HD42A
Superior Bar Bender for General Construction

36mm Rebar Bending Machine
TYB-HD42A
Superior Bar Bender for General Construction

heavy duty bar bending machine machine manual

Specifications
Bending Angle180° / 5 seconds
Bending Capacity10-36mm rebar(0.375-1.42 in)
Motor5.5kW (7.5hP)
Power Requirements3 phase, 220V / 360V, 60Hz
Weight710kg / 1,562lb
Dimension (mm)(L) 880mm (W) 860mm (H) 750mm
No. of bars the machine can bend at once
Diameter of rebar36mm32mm25mm22mm19mm16mm13mm10mm
No. of rebars11122346
Category:

Description

About our Three Phased 36mm Electric Rebar Bending Machine

  1. The TYB-HD42A has been designed in order to provide its machine operators with a better rebar bending experience. The heavy duty bar bending machine has a dual adjustable device that allows the bar bender to bend rebars in 2 different angles that can tremendously save work time and increase the production of rebars. The electric bar bender has been designed perfectly for general construction projects.

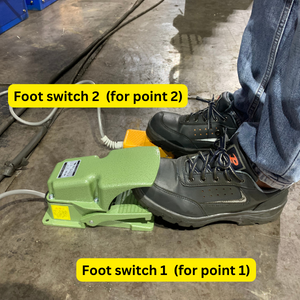

  2. The TYB-HD42A is a rebar bending machine that has been designed with the most optimal technology based on the feedback of its operators. The heavy duty rebar bending machine was designed with an addition of foot-switch that guarantees the safe operation of the machine. The addition of 2 foot switches makes rebar bending in 2 different angles much easier for the machine operators. The first footswitch can be assigned for the bar bending of the angle in Point 1. The second footswitch can be assigned for the bar bending of the angle in Point 2. An in depth demonstration video can be accessed in our Youtube channel, or you may choose to go through the machine manual of the TYB-HD42A. Here in CNB Machinery and Steel Corporation, we value the experience of the machine operators while bending rebars using our electric rebar benders.

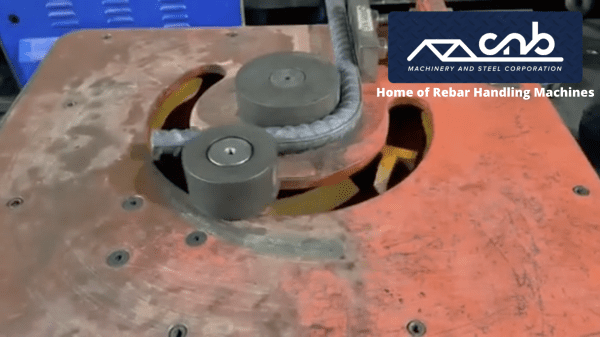

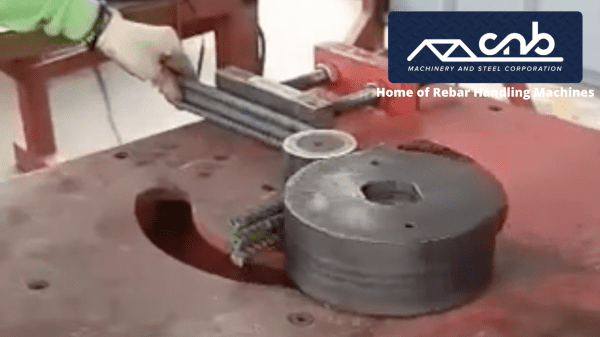

  3. The TYB-HD42A bar bending machine has an excellent bending performance that can bend up to 36mm rebars. The electric heavy duty rebar bender is equipped with a 7.5 horsepower motor that allows the machine to bend 36mm rebars in 4 seconds. The heavy duty bar bender is capable of bending up to 6 pieces of 10mm rebars. The bar bender can bend up to 4 pieces of 13mm rebars, 3 pieces of 16mm rebars, and 2 pieces of 22mm rebars with ease. The rebar bending machine was specifically designed to be a powerful machine for general construction rebar bending requirements. You may refer to the machine manual for the proper way of bending rebars using the heavy duty bender, and also may choose to watch the video uploaded on Youtube. Not following the proper instructions when bending rebars using the TYB-Hd42A bender may lead to unwanted electrical and mechanical damages in the bar bender. But rest assured, in the case of machine malfunction, you simply can contact us our after sales department for immediate assistance.
  4. As mentioned above, the rebar bending machine can bend the rebars into 2 different angles with ease with the help of the angle setting point and the footswitches. The bending process of stirrup and hoop allows the minimum bend bar-end length 6-8cm (2.36-3.15 inches).
  5. Even though the rebar bending machine is heavy duty, it is extremely easy and simple to use. The machine was designed with the highest quality parts with an extremely simple machine operation process. CNB Machinery and Steel Corporation adhered to the feedback and comments of the machine operator’s experience and continuously makes improvements in the machine and services.
  6. The TYB-HD42A is designed with a smart system that assists the machine. The rebar bending machine has a proximity switch installed that recognizes the angle that has been set and will make sure that the rotating rollers will only rotate until the designated angle. The proximity switch is also backed up with a limit switch – in the case of an error and malfunction of the proximity switch. The bar bending machine has been designed for the optimal bar bending experience for the machine operators. The smart system also prevents the machine operators from injury in the case of machine malfunction.

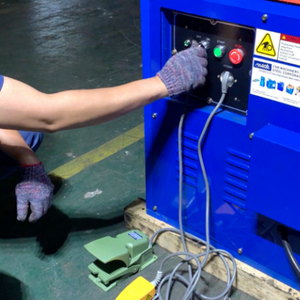

  7. The heavy duty rebar bender is a triple phased machine. Make sure to properly phase the machines before proceeding with the bending of rebars in order to prevent any electrical damage.

Heavy Duty Rebar Bender for the bending of 42mm rebars and below | General rebar bender for the bending of 32mm rebars and below | Compact bar bender for the bending of 25mm rebars and below | Youtube video of the Introduction to our TYB-HD42A | Youtube video of the Combination of Rollers of our TYB-HD42A
